Pre Sealing And Degassing Pouch Cell Assembly Equipment Battery Sealing Machine

Place of Origin : China

Packaging Type : vaccum sealing

Core Components : Sealing

Contact Now

Product Description

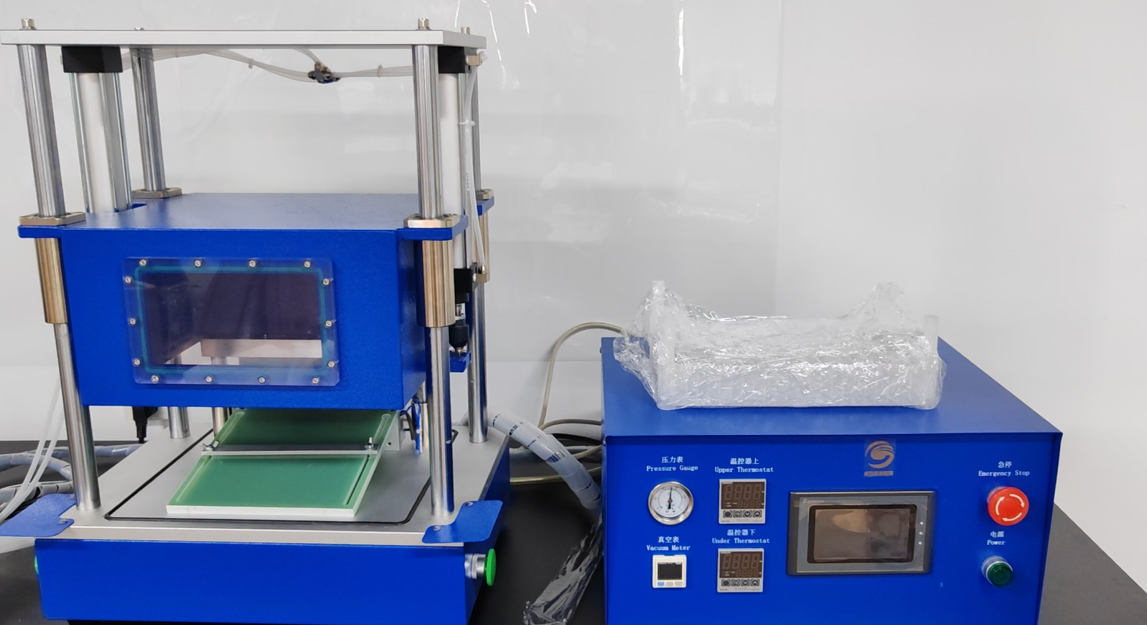

Pre Sealing And Degassing Pouch Cell Assembly Equipment Battery Sealing Machine

This device mainly has three functions: top-side sealing, vacuum pre sealing, Degassing lithium battery; This machine through the display interface classification accurately control the top side packaging, pre-packaging, vacuum static three functions. It is composed of heating seal, vacuum pump box and pneumatic heat seal component, which automatically completes the top side sealing, pre-sealing and vacuum static degassing three functions of the battery aluminum-plastic shell.
Features:

*PLC control
* The head is made of copper material, good heat transfer effect, save power consumption, improve work efficiency, energy saving than similar products;
* The pressure of the upper and lower head can be adjusted by the pressure regulator to achieve different process parameter requirements;
* The upper and lower head is driven by the cylinder through two linear guide sleeves, and the upper and lower movement isflexible, and the guide is accurate to ensure the parallelism of the product after edge sealing;
* The changes in the cavity can be observed while working through the perspective window;
* The cover cavity is driven by the cylinder, guided by the rotating guide sleeve, flexible up and down movement, accurate
guidance to ensure product sealing requirements;
* Can be applied to different specifications of product batteries, and the adjustment is simple and convenient;
* The main machine and control box split design, so that the machine can be placed in the glove box work, can also be placed in the assembly line work;
* Easy to operate, beautiful appearance, small size, light weight.

Specification

vacuum degree	up to -95Kpa
Head temperature	Normal temperature~250℃, Adjustable
Temp Accuracy	±2℃
Edge width	5±0.4mm (according to customer requirements)
Heat sealing pressure	0~7Kg/cm2 adjustable
Heat sealing time	0~99 Sec adjustable
Head length	L200mm
vacuum degree	-95Kpa~0 adjustable
Maximum edge size	200mm
Gas consumption	about 0.2L compressed gas/once per seal;
Compressed air source	0.5 ~ 0.8Mpa
Seal thickness range	60~300um;
Power Supply	AC220V/50Hz
Air source	0.5 ~ 0.8Mpa;
300wPower	300W
Weight	Working part:470mm485mm435mm
Size	Overall size: working section: 470mm * 485mm * 435mm Control box: 420mm * 325mm * 225mm
Weight	50KG
